Small Tube Sub Structures | Motorsport Fabrication [TECH TIP]

Making structures out of small diameter tube can be an easy way to package a lot of components into an assembly.

87644056 2909778569044922 7548384930862989312 o

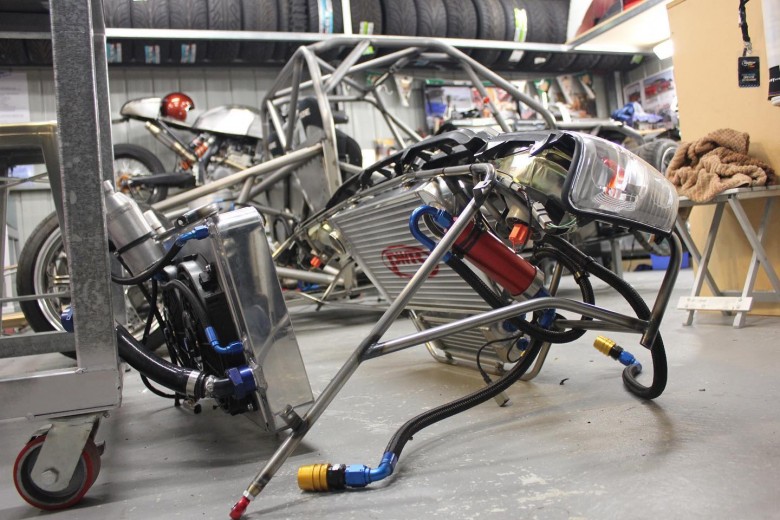

Small tube such as this 16mm diameter 1.2mm wall thickness ERW (electric resistance welded) tube is easy to work with by utilising a plumbers bender (designed for copper pipe work) to bend it into shape. By using small tube like this it’s easy to notch and triangulate to form extremely strong structures to hold components such as the intercooler, oil cooler, oil filter, headlights, bumper, grill, indicators and fenders on my Hilux in one assembly that removes for quick access and servicing of the engine.

87775494 2909778612378251 8965606233100779520 o

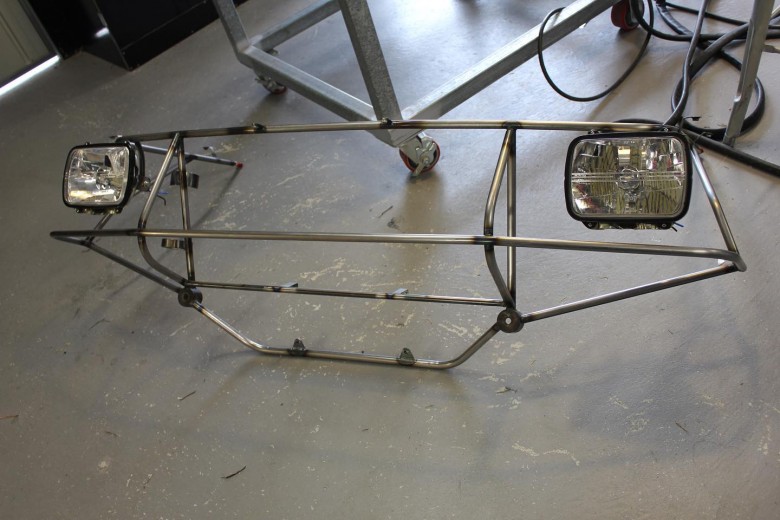

A few lengths of tube like this, a bender to suit the diameter, some sheetmetal and an idea will allow you to build inexpensive tube work that can have you achieving professional results in your home garage or workshop.

87174006 2909778782378234 2979453396311867392 o

Want to learn more about materials and processes like this? Check out the Motorsport Fabrication Fundamentals Course which will open up the possibilities for you and your project.
